Станок для подготовки лыж SKI FORM JENEX V2
Тип: асфальтовый
Станок-профиль для подготовки лыж SKI FORM JENEX V2 США
Уникальный легкий универсальный лыжный станок для обработки беговых лыж. Вес станка для обработки лыж SKI FORM для WORLD CUP составляет всего 1600 грамм.
Предназначен для лыж длиной от 140см до 212см и шириной от 40 до 100 мм.
Материал станка SKI FORM облегченный аннодированный алюминий и нержавеющая сталь. Лыжи можно закреплять в обоих направлениях без разворота профиля. Отлично подходит для небольших сервисных комнат.
Время настройки станка 20 секунд.
Очень удобен как для поездок, так и для стационарного использования.
Можно обрабатывать лыжи от 140 до 212 см.
ВЕС СТАНКА-ПРОФИЛЯ JENEX V2 для World Cup 1 кг 600 грамм.
SPECIFICATIONS
Compressed Length: 117 cm (46 inches) Extended Length: 212 cm.
Weight: 1600 grams (3.5 pounds)
Ski Sizes: Skis from 140 to 212 cm long, 40 mm wide to 100+ mm wide.
Materials: Anodized aluminum and stainless steel. The tops of the ski forms have solid rubber high friction surfaces.

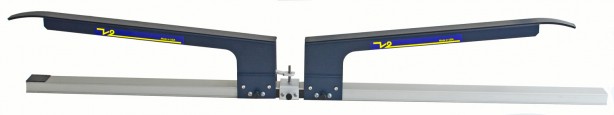

Construction: The high strength U shaped aluminum ski forms and the binding gripper slide in dual side channels on the rugged aluminum base frame. The same frame used in V2-XL900 roller ski shafts.
Adjustment time: 20 seconds. We have made some time studies of how long it takes to remove a ski from the form and install a new ski that is of a different size and after some practice the average time was about 20 seconds. If you are going from a very long to a very short ski, it can still be accomplished in under 30 seconds.
Mounting the Ski Form to a table: Two standard C clamps hold the aluminum extruded base unit to a bench or ski table. The clamps never have to be moved as they stay in the same position for skis from 212 to 140 cm.

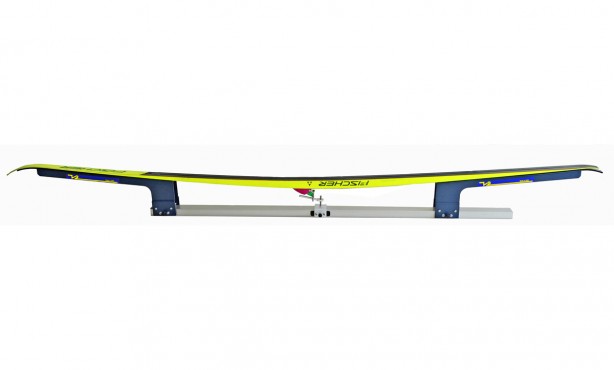

Binding Gripper: The gripper engages the triangular steel loops that can be pre mounted to the binding. The gripper is designed so it slides on the frame and engages the steel loop and securely locks the ski. The sliding gripper has vertical adjustment via a threaded stud. Adjustment is easy and rapid as can be seen in the Video.
(Patents Pending)
Видео станка-профиля JENEX V2 SKI FORM http://www.youtube.com/watch?v=FxO6fXdhANY&noredirect=1
